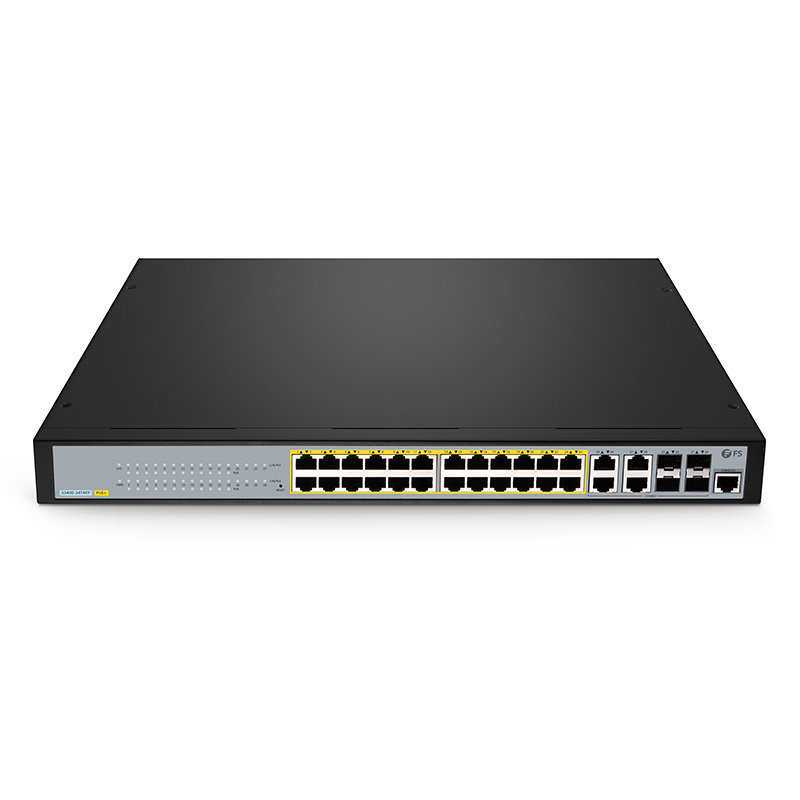

S3400-24T4FP, 24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 1Gb Combo Uplinks, Support ERPS
FS P/N: S3400-24T4FP
$439.00
Models
S3900-48T6S-R
Product Highlights
- Up to 24 PoE+ Ports, Total Budget 370W
- 3 Built-in Fans and Single Power Supply
- Support ERPS, QoS, OSPF, L2 Multicast Functions, RIP
- Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security
- Advanced Network Monitoring Using SFlow
- Support WEB/CLI/SNMP/SSH for Flexible Operation
S3400-24T4FP, 24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 1Gb Combo Uplinks, Support ERPS

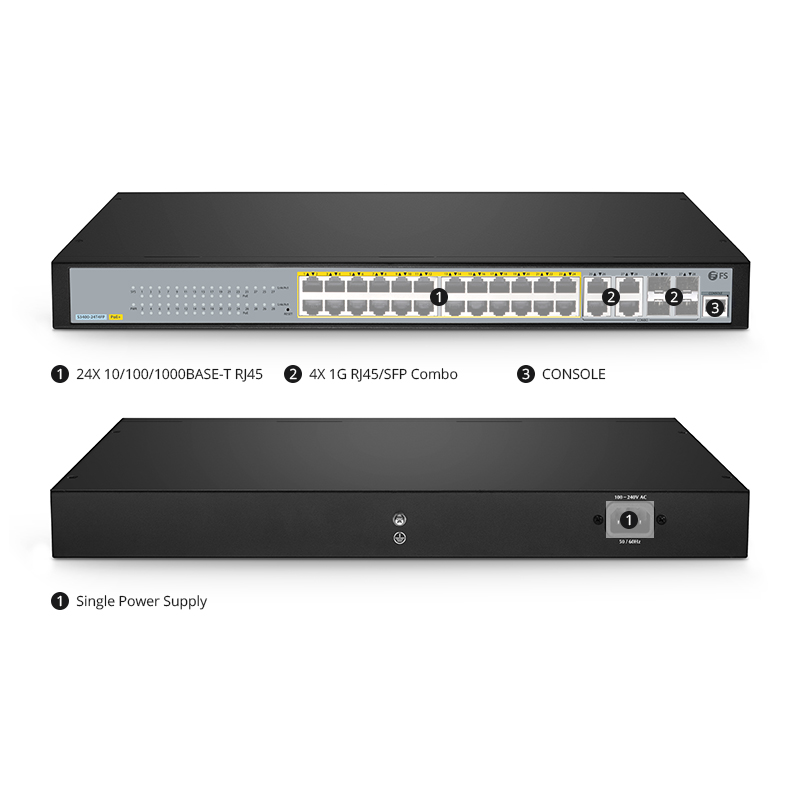

24-Port Managed PoE+ Switch is equipped with 24x 10/100/1000BASE-T ports, 4x 1Gb RJ45/SFP combo, 24x RJ45 ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. 4x RJ45/SFP combo ports meet the different network expand needs.
This access switch delivers a compact, cost-effective solution for carrier's IP MAN and enterprise networks. Based on the high-performance hardware and FSOS platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenario.
Specifications
| Ports | 24x 10/100/1000BASE-T RJ45 | 4x 1G RJ45/SFP Combo | Total Number of IPv4 Routes | 128 |
| Switching Capacity | 56 Gbps | MAC Address | 8K |
| Forwarding Rate | 42 Mpps | ARP Table | 384 |
| RAM | 128MB | Input Voltage | 100-240VAC, 50-60Hz |
| Flash Memory | 16MB (NOR) | Output Voltage | 48VDC |
| Max. Power Consumption | 20W (370W with PoE) | PoE Standard | IEEE 802.3af/at |
| Power Supply | 1 Built-in | Packet Buffer | 0.5MB |
| Fan Number | 3 Built-in | Operating Temperature | 0ºC to 45ºC (32°F to 113°F) |
| Rack Space | 1U | Storage Temperature | -40ºC to 70ºC (-40°F to 158°F) |
| Mounting Methods | Rackmount | Product Material | Metal |
| Dimensions (HxWxD) | 1.77''x17.32''x8.19'' (45x440x208mm) | PoE Budget | 370W |
